QueueMetrics Configuration and Usage APIs

QueueMetrics is a powerful call center monitoring and reporting software that provides detailed analytics for call centers. One of its key features is the JSON API, which allows developers to integrate QueueMetrics with other systems or build custom applications. This guide provides a comprehensive overview of how to work with the JSON API for QueueMetrics.

An API (Application Programming Interface) lets one software program request data or services from another software program. For example, when you use an app like a weather app, the app uses an API to ask a weather service for the current weather data, then displays it for you.

JSON (JavaScript Object Notation) is a way to format data so that it’s easy for both humans and computers to read. It’s like sending a neatly written message that both you and the computer can understand. JSON is used to send data back and forth between systems in a clear and simple way.

Which functions does the QueueMetrics API perform?

QueueMetrics uses the JSON API request in order to:

• Read and update the system configuration - Configuration API e.g., exporting, creating, and updating agents, queues, DNIS, etc.

• Export the results of most analyses in a format that is immediately usable by other software. Reports API.

• Perform actions programmatically, like, for example, creating queues and agents. RealTime API.

Working with the API request

The easiest way to interact with the JSON interface is to do it from the command line using ‘curl’ or with dialplan. All QueueMetrics JSON calls require a valid login and password, that must be passed as an HTTP basic auth.

Sending Requests

Use tools like curl, or libraries in your programming language to send HTTP requests.

Example and explanation using curl:

curl -X POST \
     -H "Content-Type: application/json" \
     -u "username:password" \
     -d '{"agent": "Agent/1001", "queues": ["4001"]}' \
     https://your-queuemetrics-instance-url/jsonEditorApi.do/

• username and password will use the “robot” user credentials

• for agent use the agent code: Ex. “Agent/101”

Handling Responses

Responses are typically in JSON format.

Check the status field for success or error indicators

Example error response:

{
  "status": "ERR",
  "message": "Invalid authentication credentials."
}

Some Example of API request

Get List of Agents

curl --user robot:robot -i -H "Content-Type: application/json" \
     -X GET http://YourQueuemetrics/queuemetrics/agent/jsonEditorApi.do

Result of API:

Create a Json file for a specific Agent

curl --user robot:robot -i \
     -H "Content-Type: application/json" \
     -X GET http://YourQueuemetrics/queuemetrics/agent/71/jsonEditorApi.do \
     -o agent.json

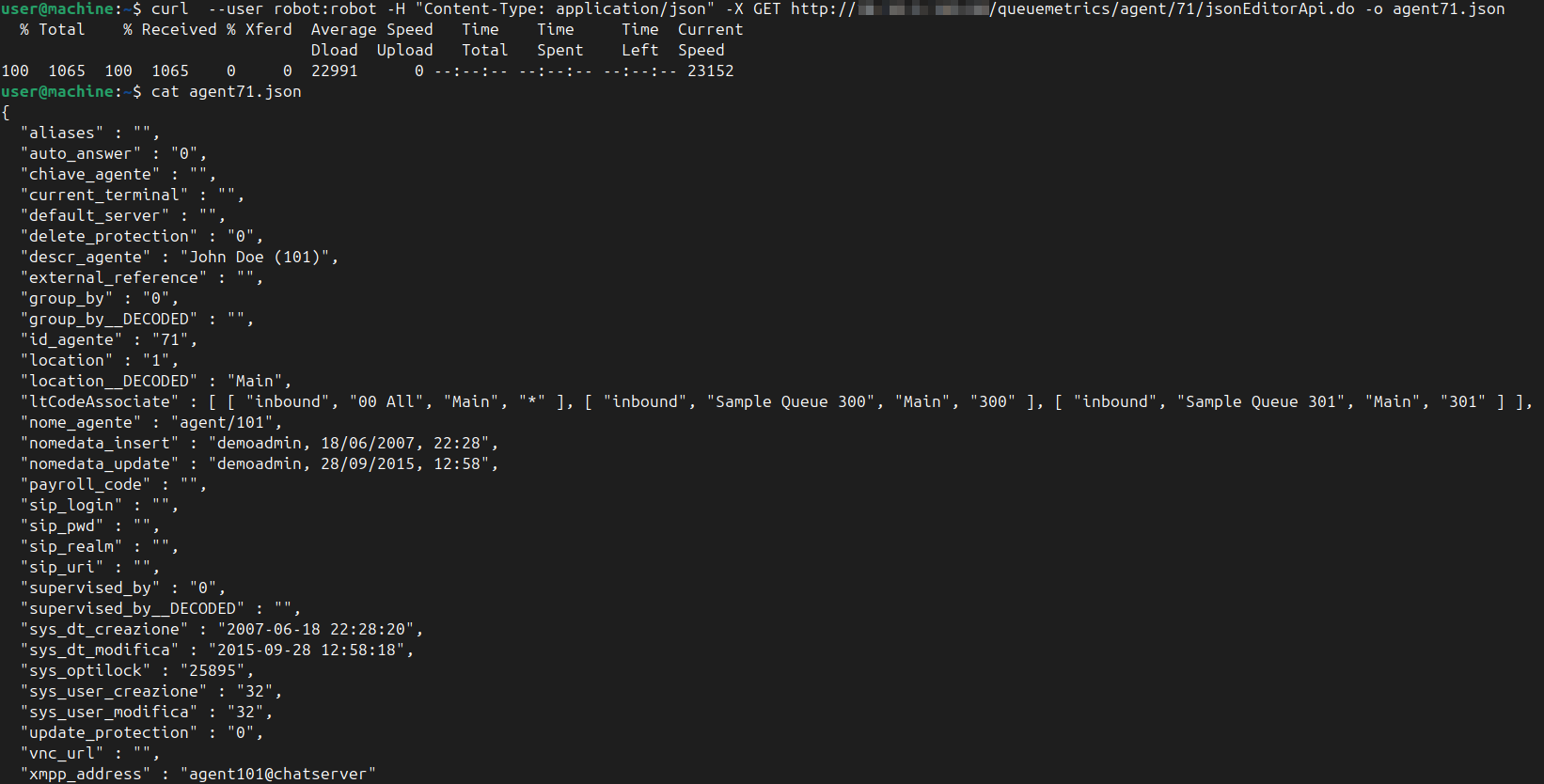

Result of API request:

Create a new agent using a json file

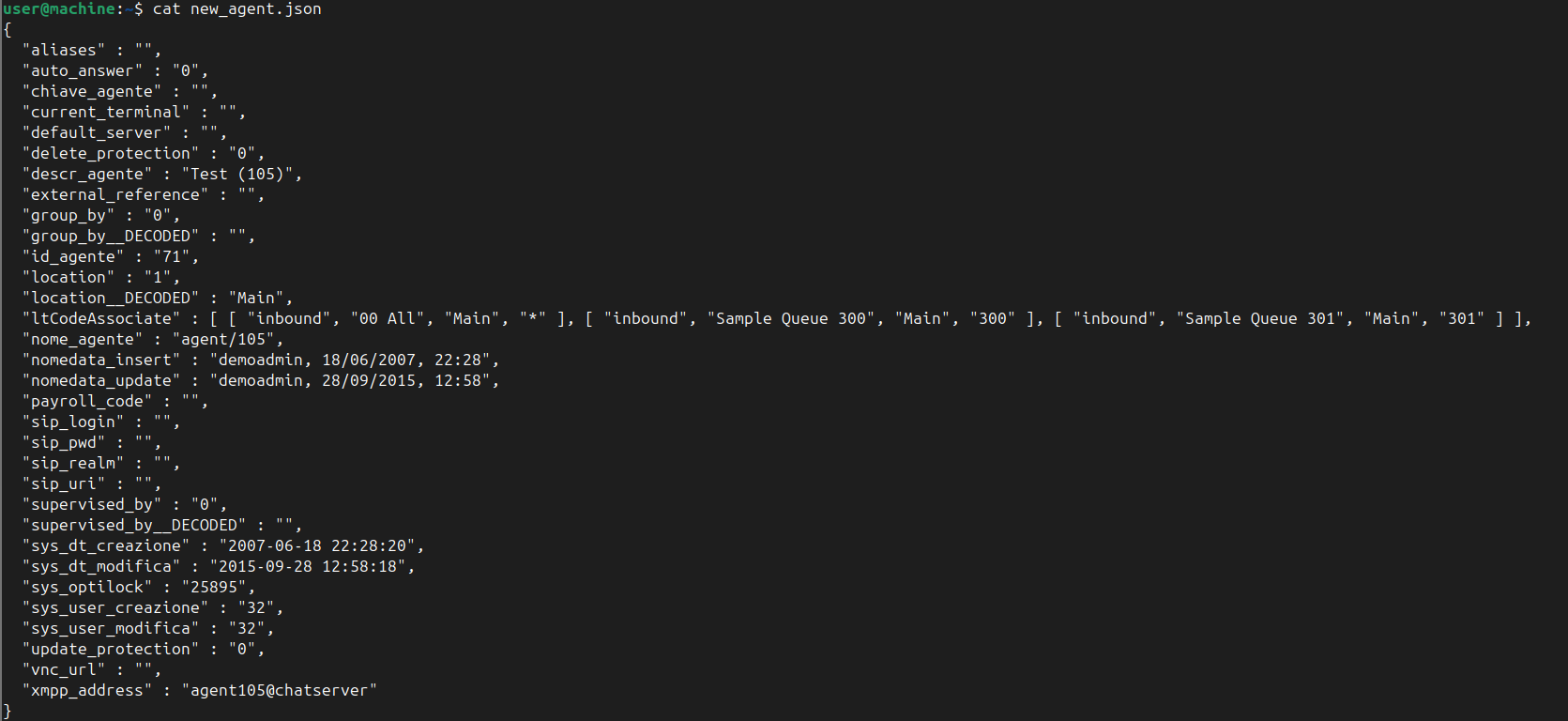

After editing the JSON file with the new agent parameters and creating the new_agent.json file:

Using this API request will create the new agent:

curl --user robot:robot -i -H "Content-Type: application/json" \
     -X POST -d @new_agent.json \
     http://YourQueuemetrics/queuemetrics/agent/-/jsonEditorApi.do

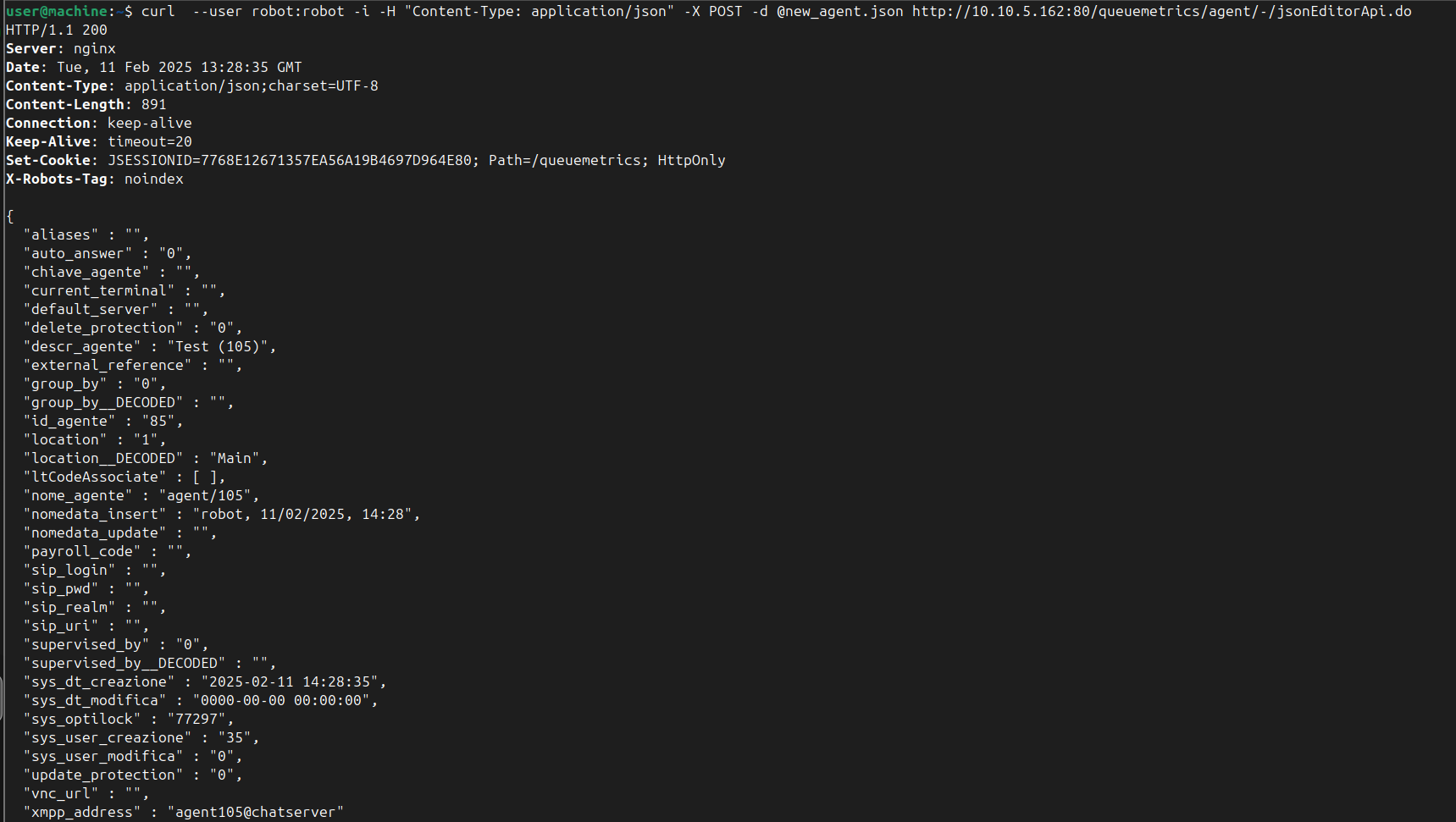

Result of API request:

In our documentation you can find the other items that you can edit.

Retrieve data from datablock

curl --user robot:robot -i \
     -H "Content-Type: application/json" \
     -X GET \
     "http://YourQueuemetrics/queuemetrics/QmStats/jsonStatsApi.do?queues=500&from=2000-01-01.00:00:00&to=2022-01-01.00:00:00&block=DetailsDO.CallsOkRaw"

Result of API request:

Retrieve Realtime Live data

curl --user robot:robot -i \
     -H "Content-Type: application/json" \
     -X GET \
     "http://YourQueuemetrics/queuemetrics/QmRealtime/jsonStatsApi.do?queues=999&block=RealtimeDO.RtAgentsRaw&block=RealtimeDO.RtCallsRaw"

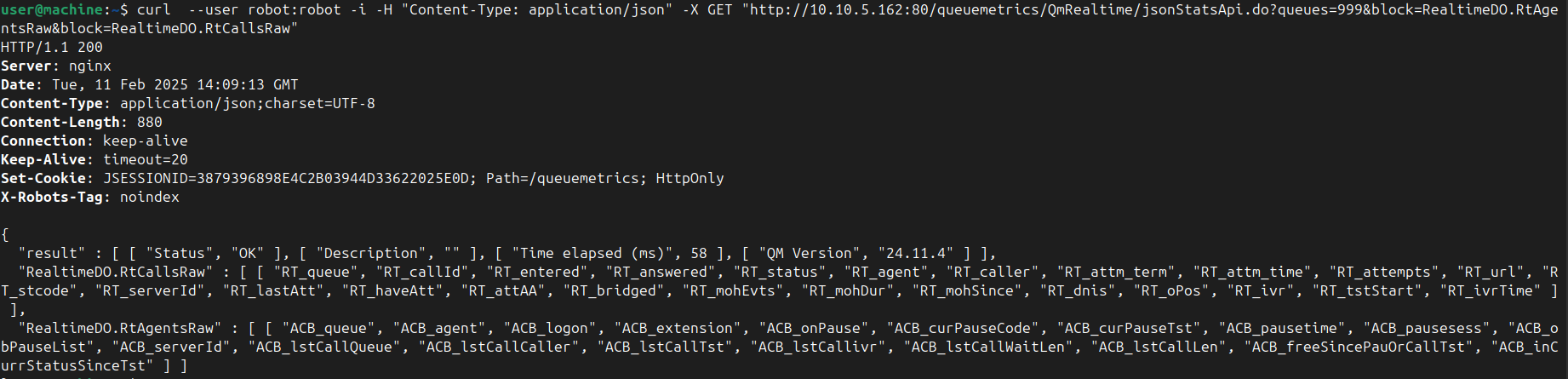

Result of API request:

Troubleshooting

Below are some common issues you might encounter.

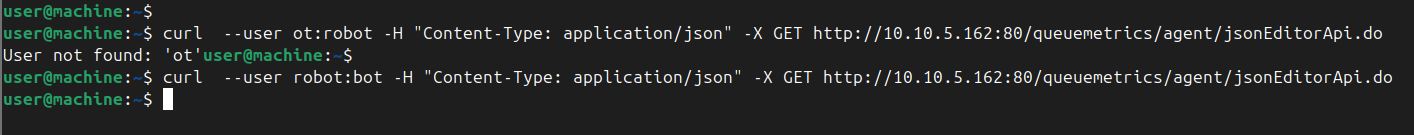

Authentication Failures

Issue: Incorrect credentials
Example response:

Solution

Check the –user parameter to ensure that it is enabled and the credentials are correct.

Missing Robot Key

Issue: The user does not have a robot key.
Example response:

Solution

Assign a robot key to the user.
More info about User keys here.

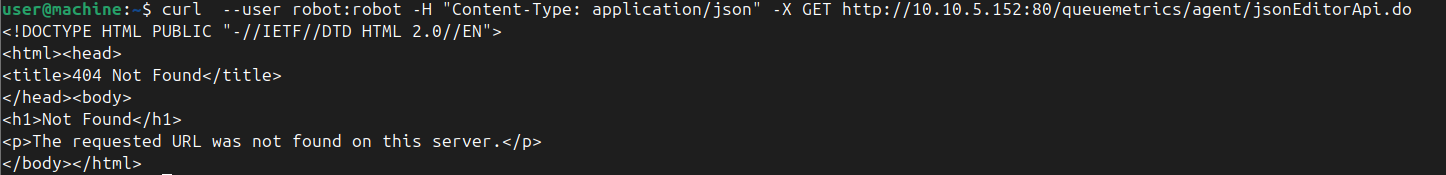

Incorrect Address or Port

Issue: The provided address or port is incorrect.
Example response:

Solution

Verify the address and/or port configuration.

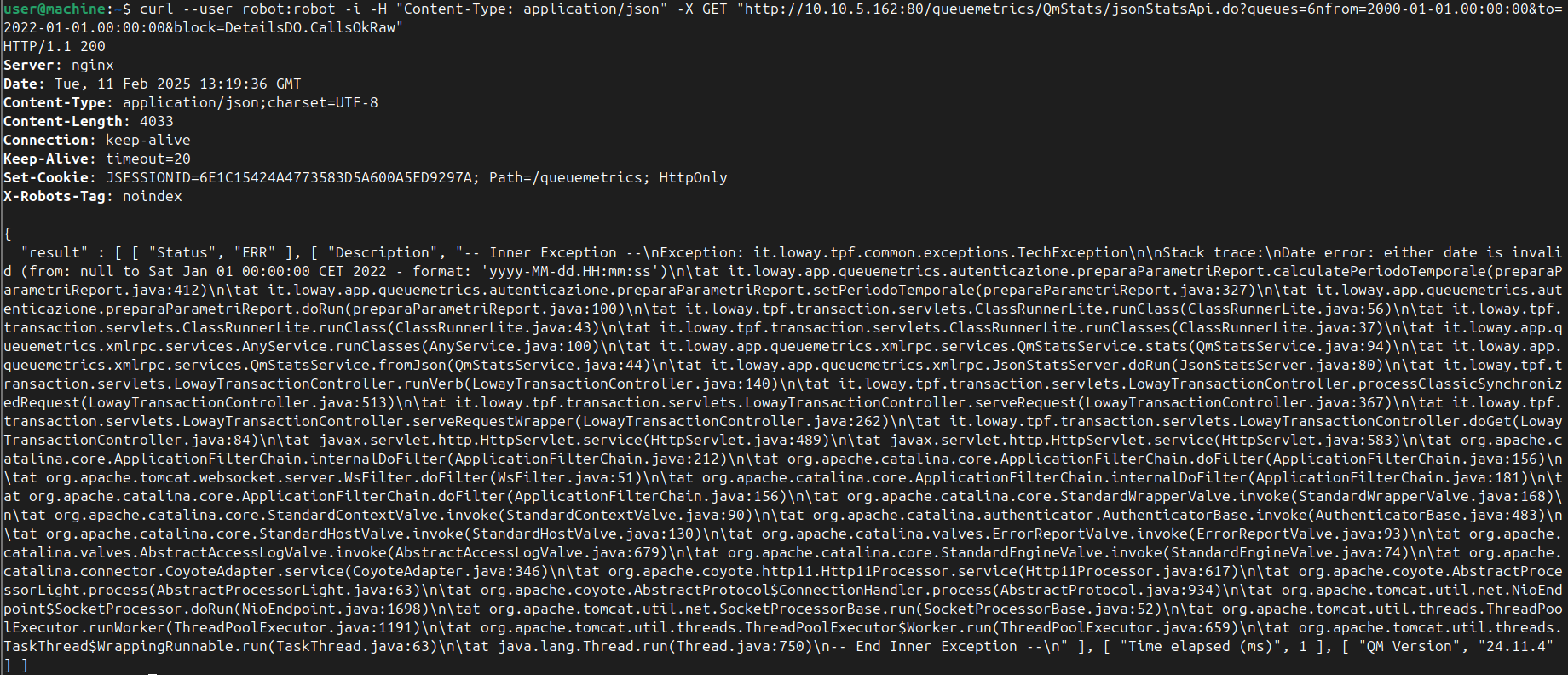

Invalid Parameters

Issue: The queue name is used instead of the queue number.
Example response:

Solution

Check the parameters of the API request, to ensure they are correctly formatted.

Note that:

• Use the queue number instead of the queue name.

• If specifying multiple queues, use the --data-urlencode parameter.

Example

--data-urlencode "queues=500|501|502"

curl --user robot:robot -i \
     -H "Content-Type: application/json" \
     -X GET \
     "http://YourQueuemetrics/queuemetrics/QmStats/jsonStatsApi.do" \
     --data-urlencode "queues=500|501|502" \
     --data-urlencode "from=2000-01-01.00:00:00" \
     --data-urlencode "to=2022-01-01.00:00:00" \
     --data-urlencode "block=DetailsDO.CallsOkRaw"

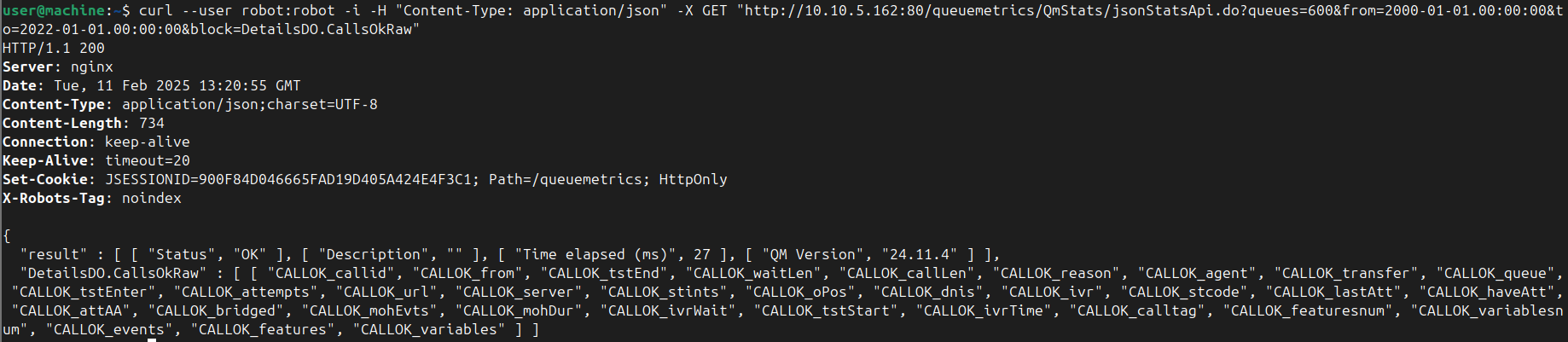

No data in the response

Issue: The url request is correct, but the response doesn’t show any data.
Example response:

Solution

Make sure the date from=2000-01-01... and datablock parameters block=Detail... of the request are correct.
